Product Description
Product Parameters
| GB | ISO | ASTM | JIS |
| TU1 | Cu-OF | C10200 | C1020 |
| T2 | Cu-RTP | C11000 | C1100 |
| TP1 | Cu-DLP | C12000 | C1201 |
| TP2 | Cu-DHP | C12200 | C1220 |
| GB | Composition(%) | |||
| Cu | P | O | Other | |
| TU1 | 99.97 | 0.002 | less than 0.002 | balance |
| T2 | 99.9 | – | – | balance |
| TP1 | 99.9 | 0.004-0.012 | – | balance |
| TP2 | 99.9 | 0.015-0.040 | – | balance |
| ASTM | Composition(%) | |||
| Cu | P | O | Other | |
| C10200 | 99.95 | 0.001-0.005 | – | balance |
| C11000 | 99.9 | – | – | balance |
| C12000 | 99.9 | 0.004-0.012 | – | balance |
| C12200 | 99.9 | 0.015-0.040 | – | balance |
| Grade | Temper | Thickness /mm | Elongation A11.2/% | Hardness | ||
| Thickness/mm | HV | |||||
| T2 TP1 TP2 TU1 | C1100 C1201 C1220 C1020 | M20 | 4- 14 | no less than 30 | – | – |
| 060 | 0.3-10 | no less than 30 | noless than 0.3 | no more than 70 | ||
| H01 | no less than 25 | 60-95 | ||||
| H02 | no less than 8 | 80-110 | ||||
| H04 | – | 90-120 | ||||
| H06 | – | no less than 110 | ||||

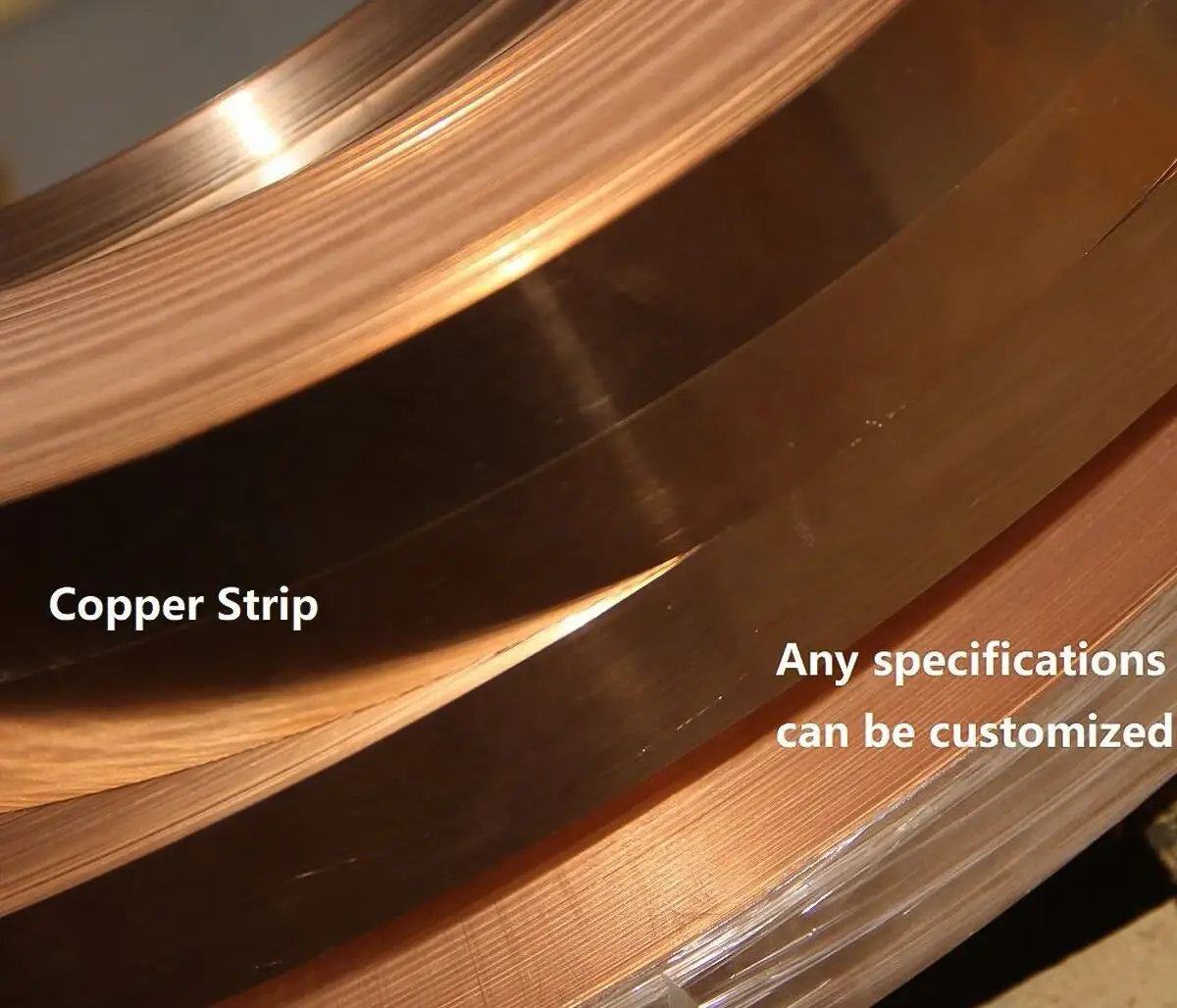

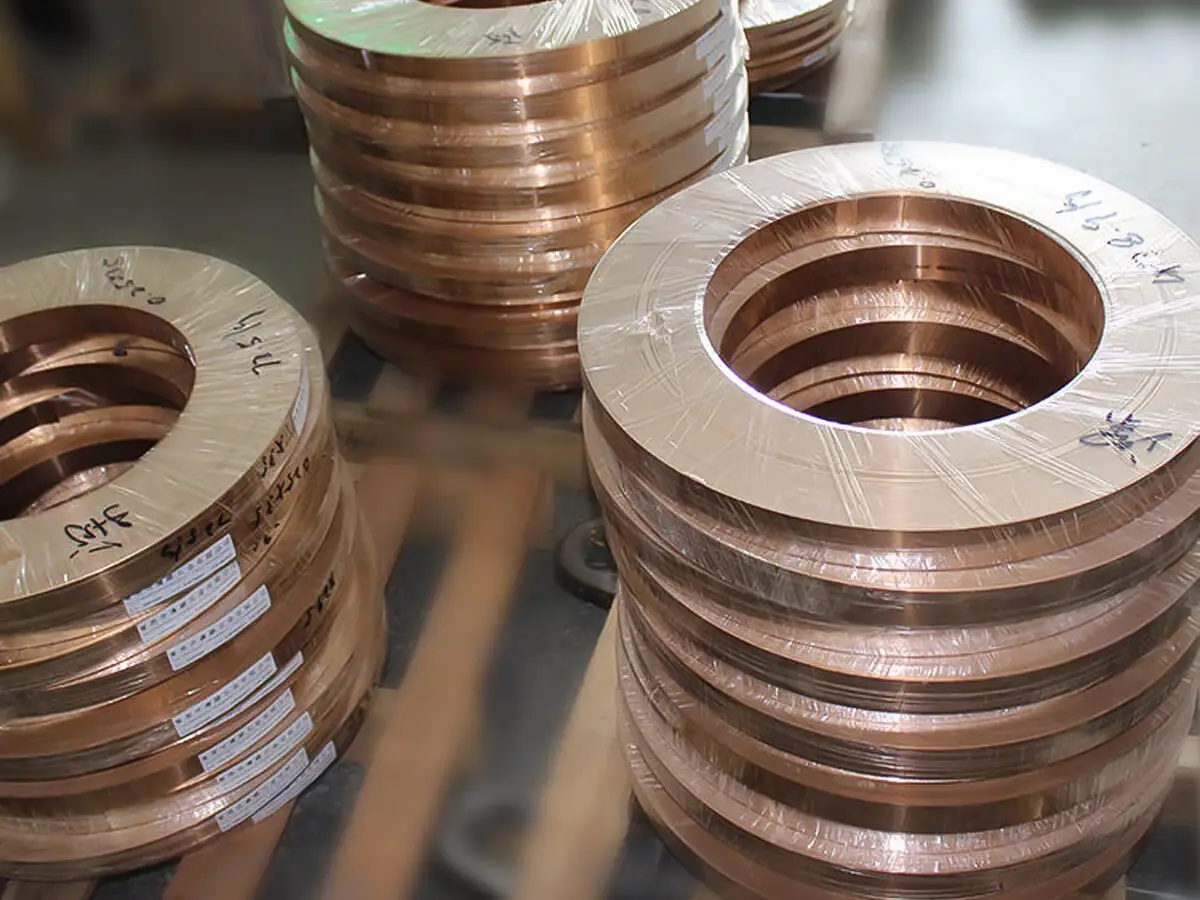

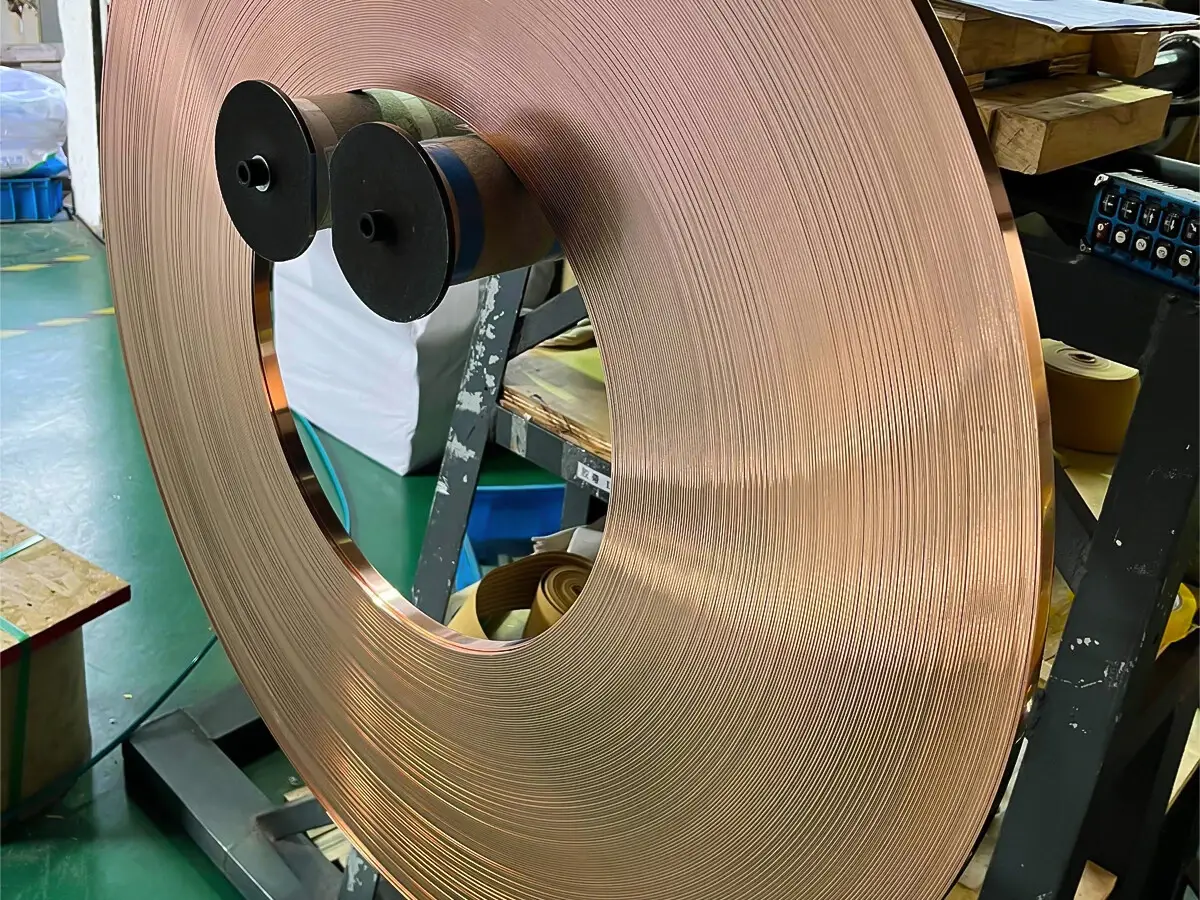

Products Display
Copper strip is a strip material made of copper. It can have different thicknesses, widths and lengths and is commonly used in electronic equipment, electrical engineering and industrial manufacturing. Copper strip has good electrical and thermal conductivity and is therefore widely used in circuit board manufacturing, electronic component connection and electromagnetic shielding.
More Product Details

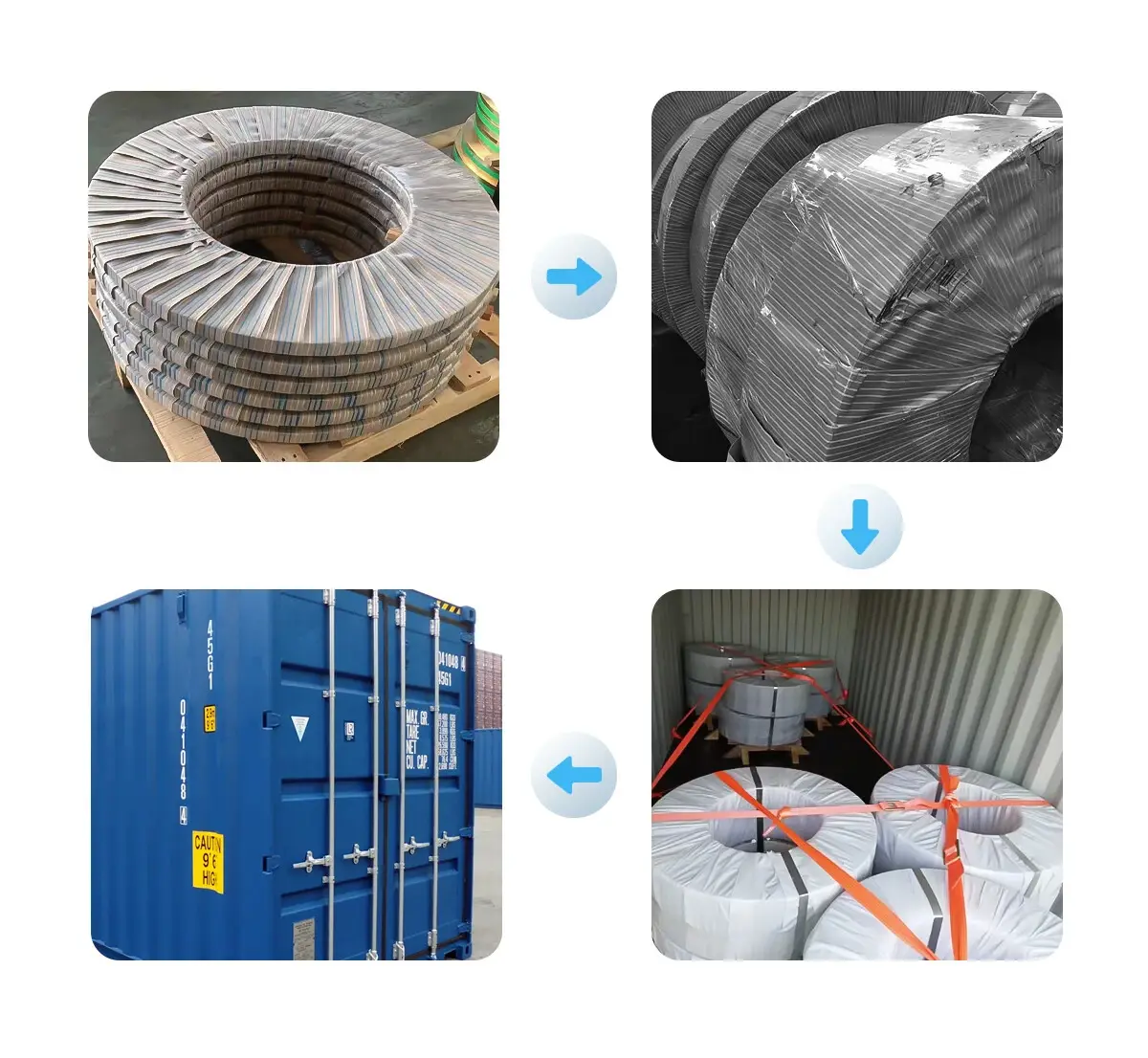

Products Packaging
| Packing | The sheets is packed with PVC film or water-proof kraft in the first layer, the second layer is iron sheet package, then wrapped on the metal pallet or metal square tube with steel strip. |
| It’s is water-proof and sea-worthy, and warmly welcomed by the customers.OEM accepted, besides,the pakage can also be according to your demands. | |
| Shipping | 1.Shipping by containers |
| 2.Shipping by bulk ship. |
Products Application
Copper strip is a very common metal component, often used in electrical components, lamp heads, battery caps, buttons, seals, and connectors.
Target Market
We are exported to Korea, the USA, Germany, Russia, France, South Africa and other countries, the business scope for the world!
