Product Description
Product Parameters
| Item | Copper plate /copper sheet |
| Category | JIS H3250-2006,ASTM B152M,GB/T19001-2016,etc |
| Material | T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000, C44300,C44400,C44500,C60800,C63020,C65500,C68700, C70400,C70600,C70620,C71000,C71500,C71520,C71640,C72200,etc |
| Size | Thickness:0.1mm~500mm Width:4mm~2500mm Length:1m~12m or as required. |
| Hardness | 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc |
| Surface | mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required |
| Application | 1. Pancake Coil for ACR, General Engineering Applications 2. LWC Coil for ACR, General Engineering Applications 3. Straight Copper Tubes for ACR and Refrigeration 4. Inner-grooved copper tube for ACR and Refrigeration 5. Copper Pipe for Transportation System of water, gas and oil 6.PE-coated copper tube for water/gas/oil transportation system 7.Semi-finished Copper tube for industrial applications |
| Payment Terms | 30% T/T in advance as deposit,70% balance against the B/L copy or 100% irrevocable L/C at sight |
| MOQ | 3 tons pre size |
| Delivery time | 3-15 working days after receiving L/C or deposit |
| Remark | Specific requirement of alloy grade,temper or specification can be discussed at your request |
| Alloy Grade | Length (mm) | Width (mm) | Thickness (mm) | Thickness (gauge/AWG) | Weight (kg/sheet) |
| C10200 | 2400 mm | 1200 mm | 2.0 mm | 12 | 51.5 kg/sheet |
| C11000 | 2000 mm | 1000 mm | 2.0 mm | 12 | 35.9 kg/sheet |
| C11000 | 2000 mm | 1000 mm | 3.0 mm | 9 | 53.7 kg/sheet |
| C11000 | 2400 mm | 1200 mm | 3.0 mm | 9 | 77.3 kg/sheet |
| C11000 | 2400 mm | 1000 mm | 4.0 mm | 6 | 85.9 kg/sheet |
| C11000 | 2000 mm | 1000 mm | 5.0 mm | 4 | 89.4 kg/sheet |
| C11000 | 2400 mm | 1000 mm | 6.0 mm | 3 | 128.8 kg/sheet |
| C11000 | 2000 mm | 1000 mm | 10.0 mm | 179.0 kg/ sheet | |
| C12200 | 2400 mm | 1200 mm | 0.55 mm | 23 | 14.2 kg/sheet |
| C12200 | 2400 mm | 1200 mm | 0.7 mm | 21 | 18.0 kg/sheet |
| C12200 | 2400 mm | 1200 mm | 0.9 mm | 19 | 23.2 kg/sheet |
| C12200 | 1800 mm | 900 mm | 1.2mm | 17 | 17.4 kg/sheet |
| C12200 | 2400 mm | 1200 mm | 1.6 mm | 14 | 41.2 kg/sheet |
| C12200 | 2500 mm | 1250 mm | 3.0 mm | 9 | 83.8 kg/sheet |

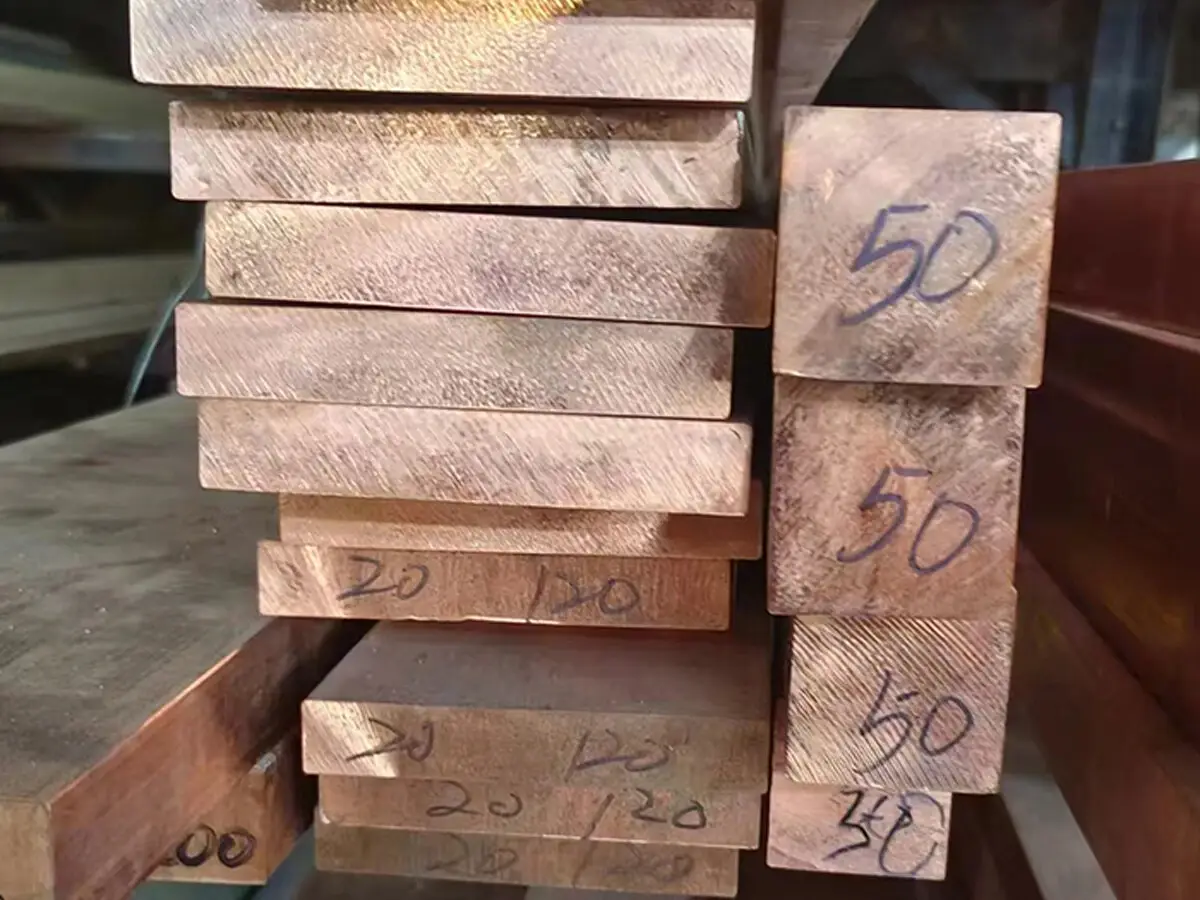

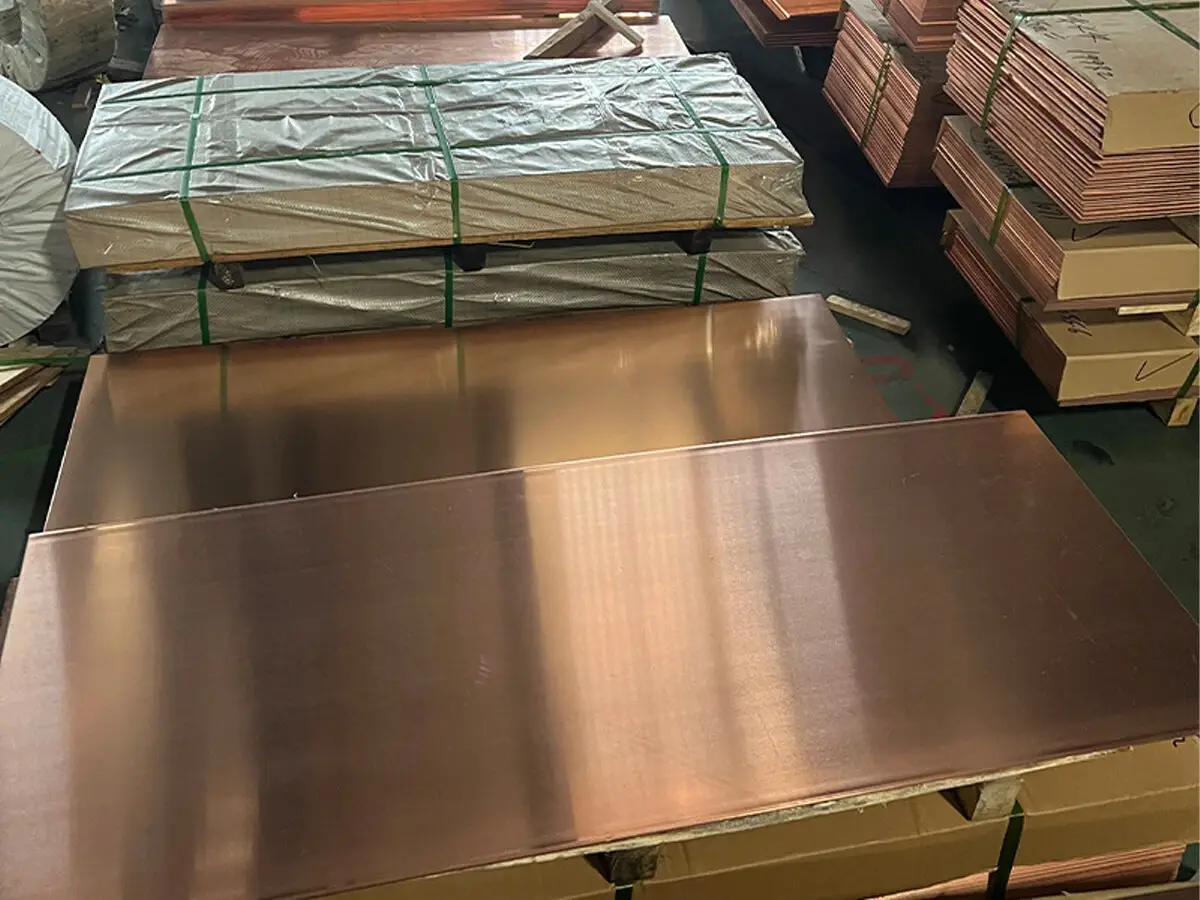

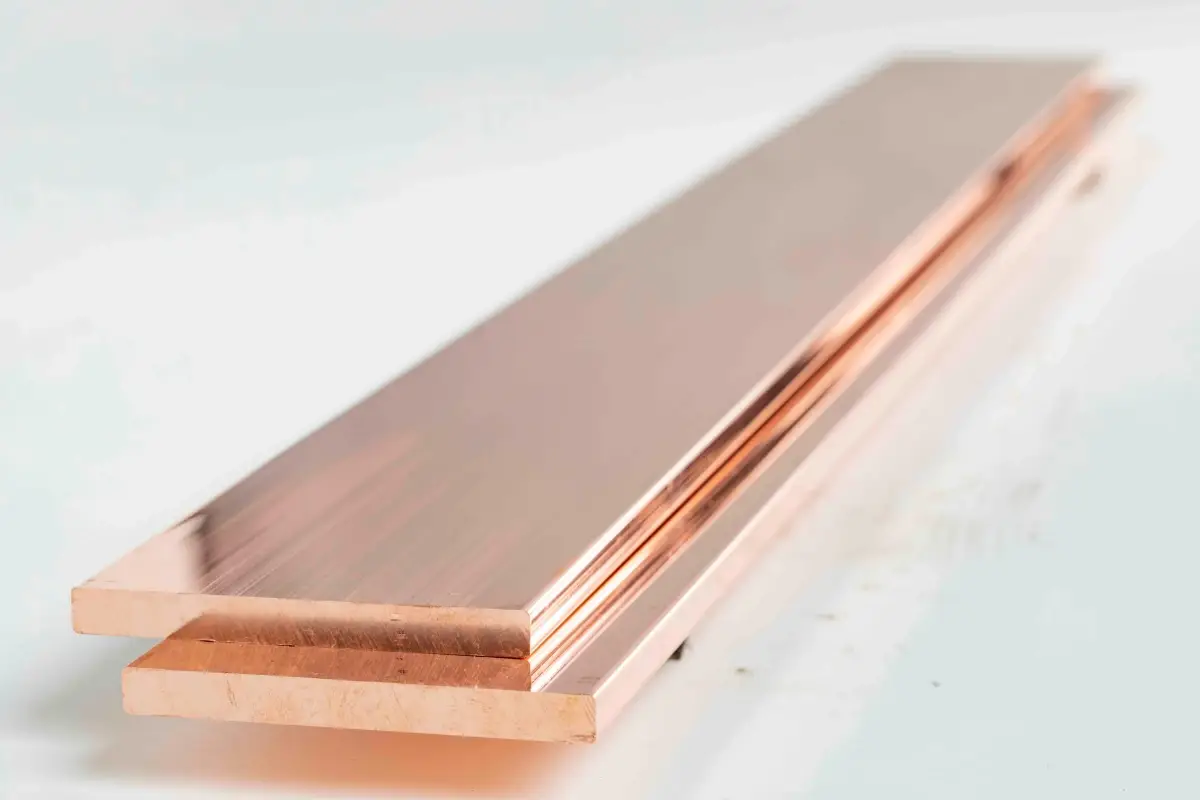

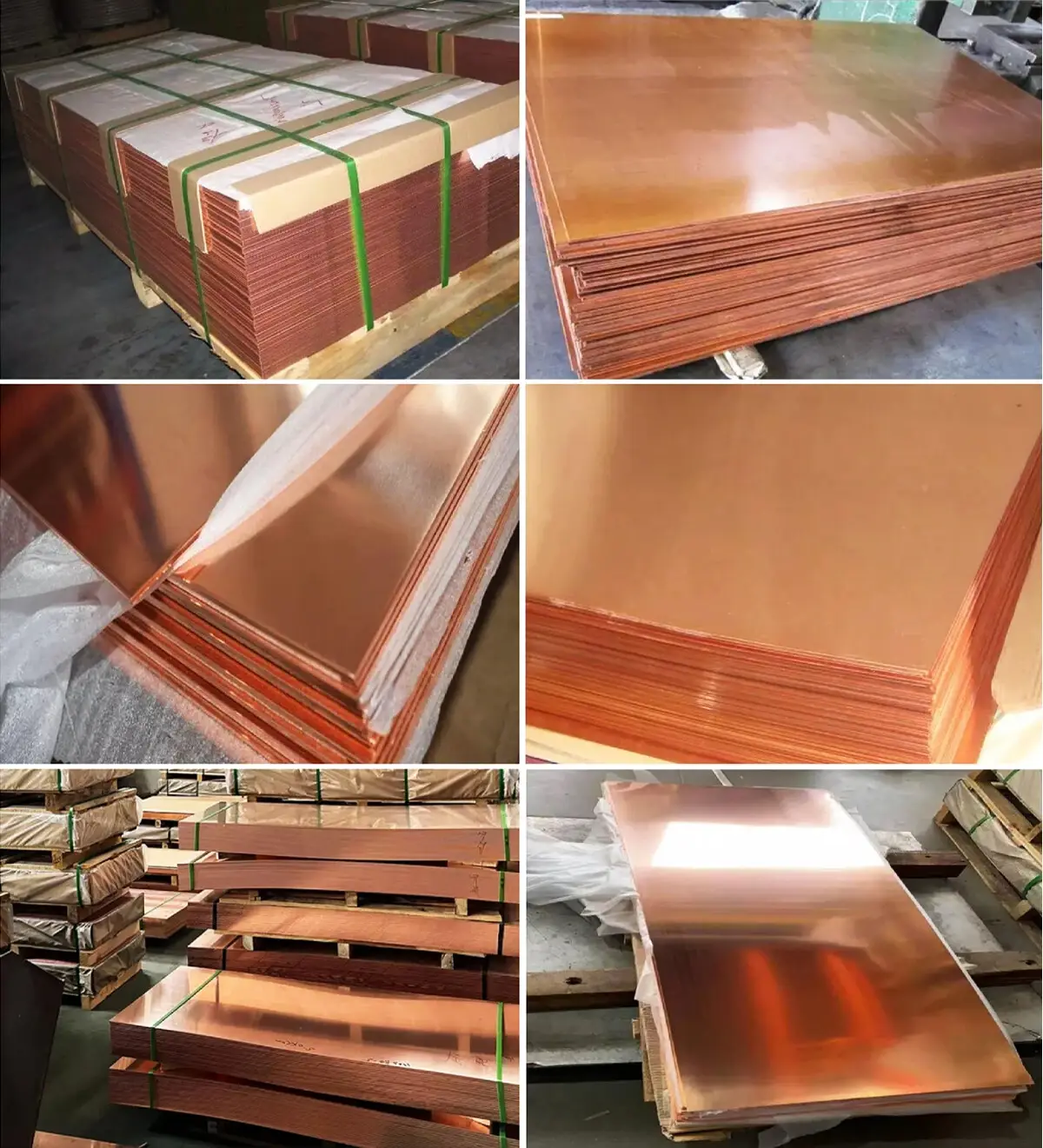

Products Display
Copper plate (or sheet) is a very malleable form of metal.
There are four main types of copper plate (or sheet): pure copper plate, brass plate, bronze plate and nickel silver plate.
Pure copper plate has excellent thermal and electrical conductivity, excellent hot and cold processing performance, can be welded and brazed, and has good corrosion resistance;
Brass plate has uniform color, excellent processability, excellent deep drawing capabilities and easy to electroplate and paint on, and also great corrosion resistance and weldability;
Bronze plate has excellent cold workability, electroplating, hot dip plating and welding performance and high strength, elasticity and resistance to seawater and process atmosphere corrosion;
Nickel silver plate also has good cold and processing performance, good electroplating, hot dip plating and welding performance, high strength, high elasticity, corrosion resistance, fatigue resistance, shielding and other properties.

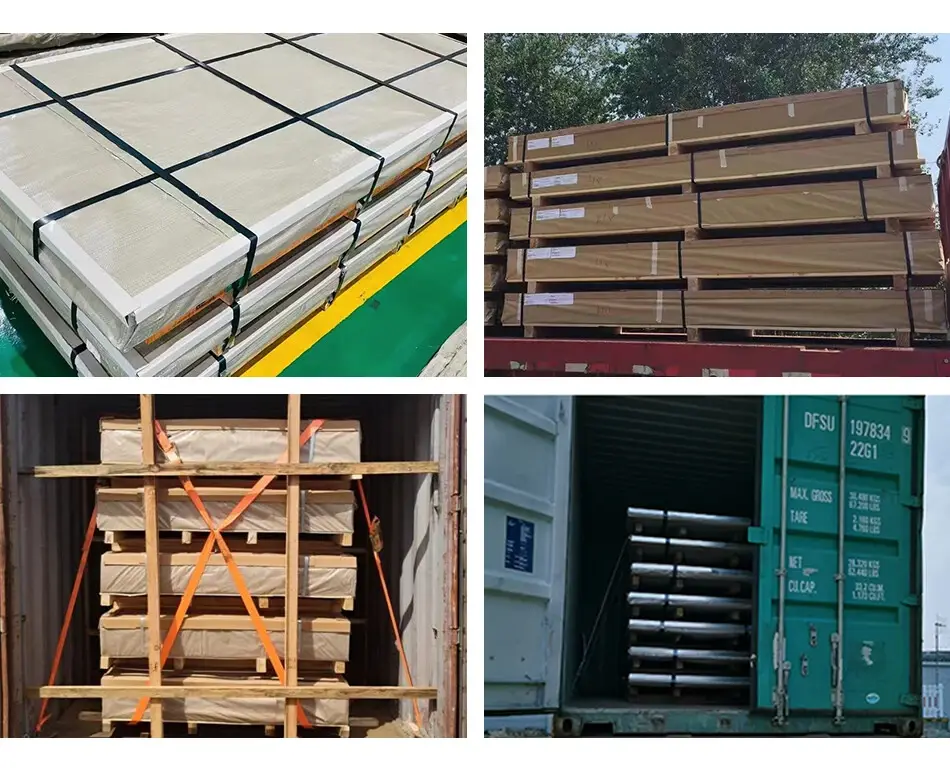

Products Packaging
Standard export seaworthy or as customers’ requirements
Products Application
Copper sheets are popular products for uses such as coins, architecture, motor vehicles, structural engineering, and medical equipment. We supply copper sheet products that are versatile in use but reliable in application.
