China supplier provide customized enameled copper wire for sale

Packing Details: Cartons, Wooden pallets, Containers, etc.
Standard:JIS, NEMA, JIS, IEC, GB
Application: Coils, Windings, Voice coils, etc
Film Grade: 1B、2B
Thermal Class: 180 200
Email: sheldon@jshxmetal.com

Ask For a Quote
Send E-mail
60s online customer service
2 days customize solutions
Factory visiting anytime
1-10 days dispatch the goods
One week of installation
2 days of training
365 days after-sales online
Project tracking regularly
2 days provide maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Product Description

Enameled TypePolyesterModified Polyesterpolyester-imidePolyamide-imidepolyester-imide /Polyamide-imide
Insulation TypePEW/130PEW(G)/155EIW/180EI/AIW/200EIW(EI/AIW)220
Thermal class130, CLASS B155, CLASS F180, CLASS H200, CLASS C220, CLASS N
ConductorCCACCACCACCACCA
Size(mm) supply0.11-8.00.11-8.00.11-8.00.11-8.00.11-8.0
Enamel thicknessGrade(0,1,2,3)Grade(0,1,2,3)Grade(0,1,2,3)Grade(0,1,2,3)Grade(0,1,2,3)
StandardIEC60317-0-2

IEC60317-29

MW36-ASZ Enterprise standardSJ/T11223-2000

IEC60317-0-2I

EC60317-29

MW36-ASZ Enterprise standardSJ/T11223-2000

IEC60317-0-2I

EC60317-29

MW36-ASZ Enterprise standardSJ/T11223-2000

IEC60317-0-2I

EC60317-29

MW36-ASZ Enterprise standardSJ/T11223-2000

IEC60317-0-2

IEC60317-29

MW36-ASZ Enterprise standardSJ/T11223-2000



SpecificationCopper in Volume(%)Copper in Mass(%)Length comparisonDensity (g/cm3)Max.DC. Resistivity (ohms.mm2/m(20oC)Min.conductivity (%IACS)
CCA-10% copper8~13272.65:13.320.0274363
CCA-15% copper13~17372.45:13.630.0267665
Copper 100%1001001:018.890.01724110



Diameter(MM)Minimum breakdown voltage(V)Diameter(MM)Minimum breakdown voltage(V)
1212
0.100120022000.35026004400
0.110150028000.40028004500
0.120160029000.45028004500
0.140180031000.50030004600
0.180190034000.55030004700
0.200200036000.60031004900
0.230210038000.70031005000
0.250230040000.80032005000
0.280240041000.90033005200
0.310240042001.00~2.5035005200
>2.50015002800

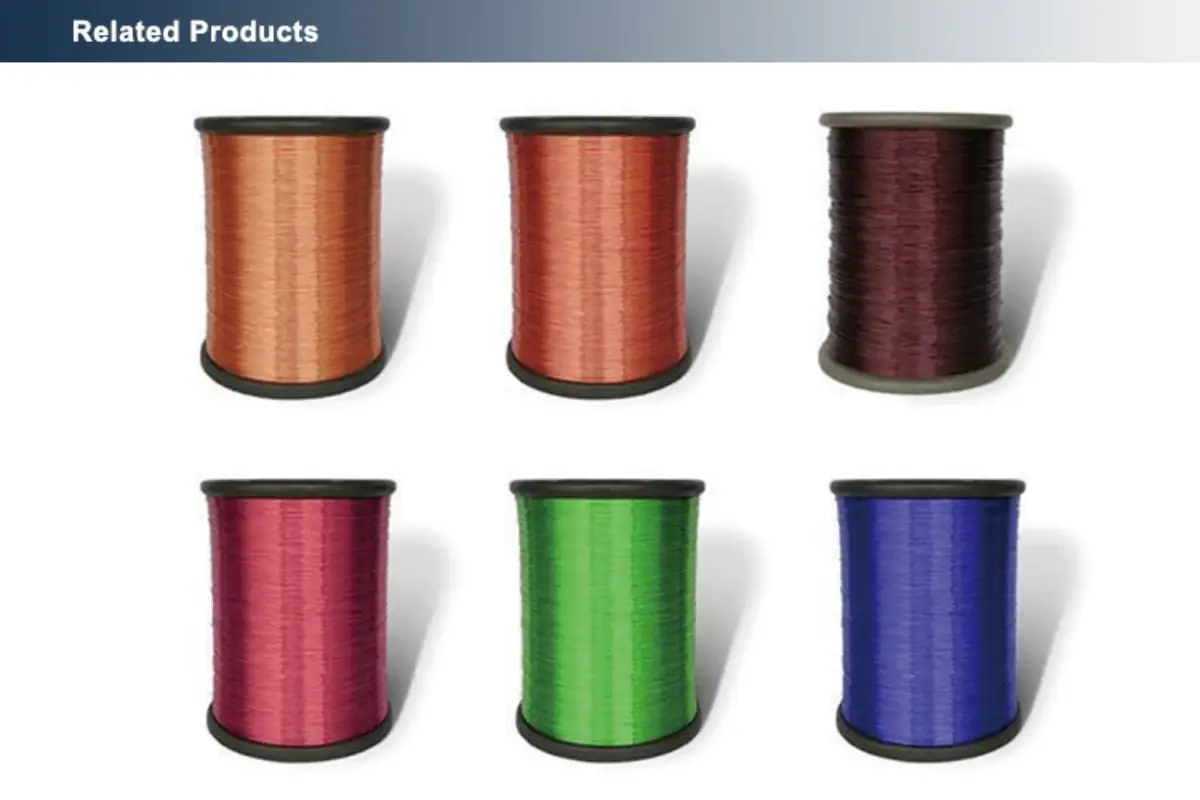

related product

product detail

Packaging and Transportation

PACKAGE：
Standard export seaworthy packing.
DELⅣERY TIME:
3-20 days after confirming order, detail delivery data should be decided according to production season and order quantity.

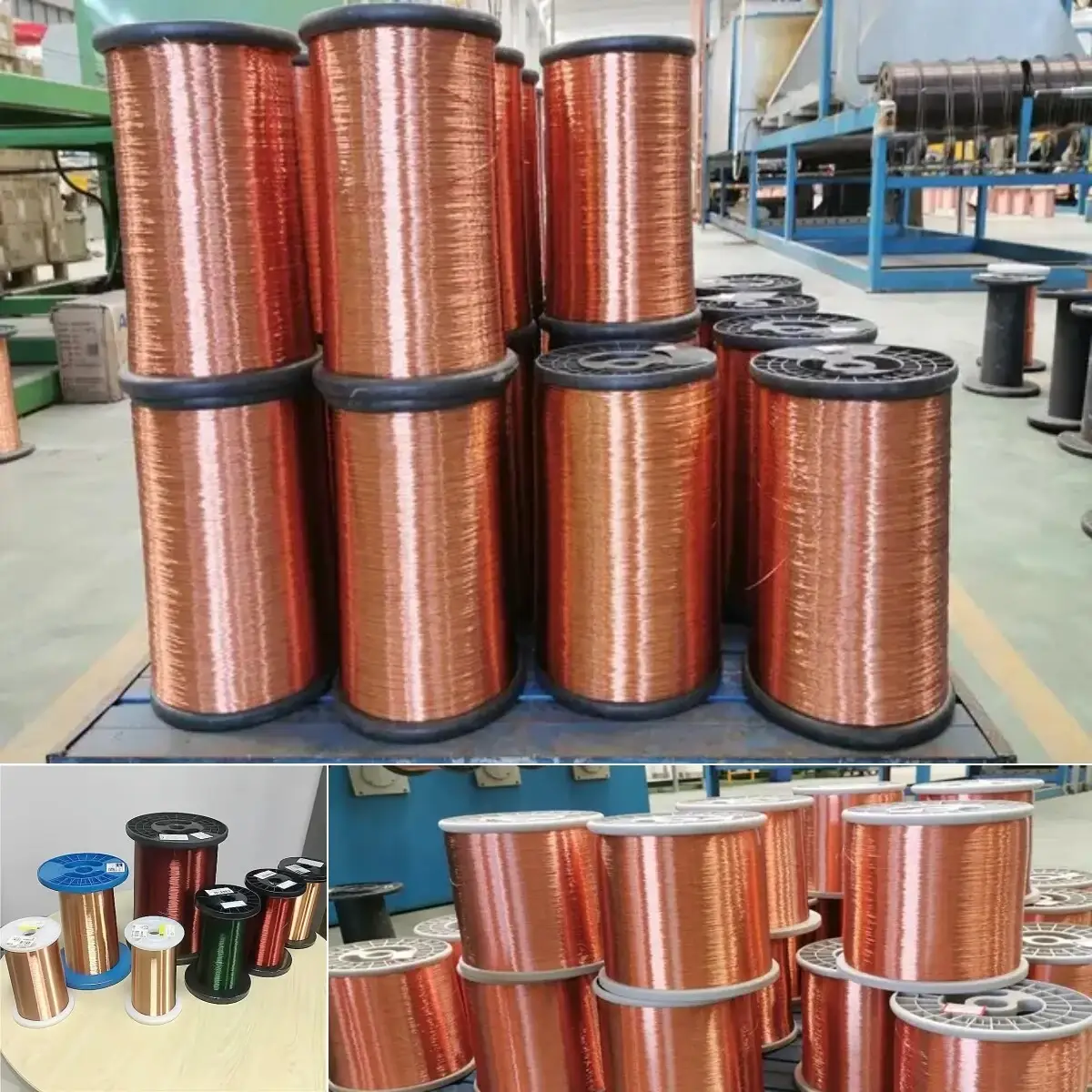

product packing

Products Applications

product application
